Product Details

Product Introduction

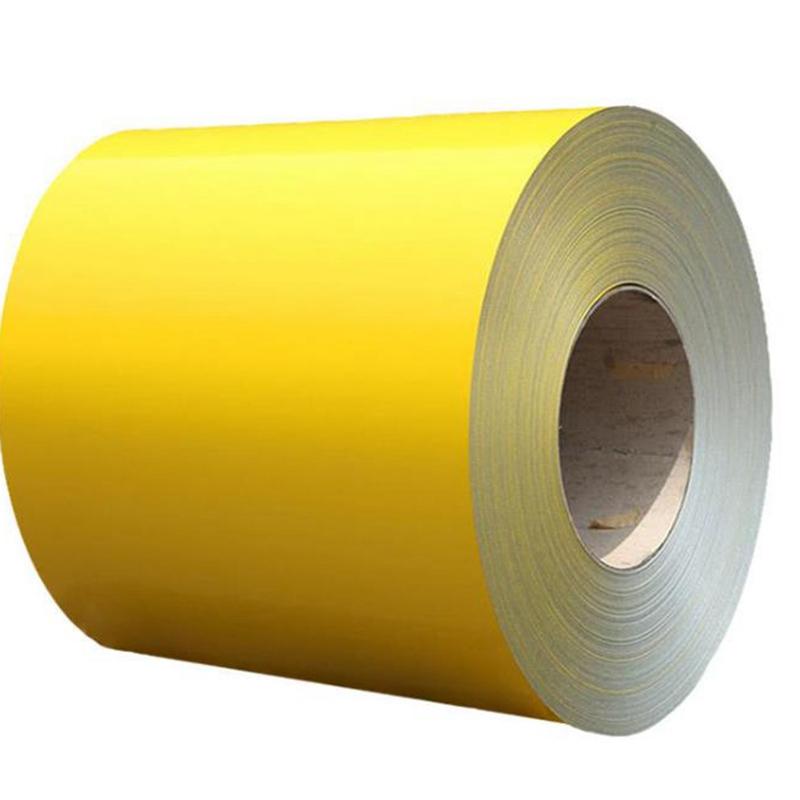

Product Name	Pre-painted Aluminum Coil / Sheet (PPAL)
Technical Standard	ASTM ,GB/T3280-2007,JIS, DIN,BS ,AS etc
Grade	Equivalent. In full hard, semi hard and soft quality
Base Material	Aluminum Alloy Coils (1060/1100/3003/3004/3105/5052)
Thickness	0.18mm-1.5mm
Width	600mm-1270mm (usual 914 / 1000 / 1200 /1220 / 1250mm)
Coil ID	508mm or 610mm
Paint Systems	Primers: Epoxy, PU
	Top Coating:
	Polyester (HDP/PE)
	Silicon Modified Polyester (SMP)
	Poly Vinyl Di Flouride (PVDF)
	Back Coating: Epoxy, Polyester, PU
Coating Thickness	Top Coating: 5+8 μm---5+20 μm;
Coating Thickness	Back Coating: 5-24 μm (usual 5-7 μm)
Colours	As Per RAL Chart / Customer sample
Surface Finishes	Glossy / Matte
Coil Weight	1MT -3 MT (usual 1.5 MT)
Packing	Sea Worthy Export Packaging. Or according to customer's requirements
Application	Industrial panels, roofing and siding for painting
Loading Port	Tianjin Port/Jingtang Port/Shanghai Port, China
Remarks	Insurance is all risks
Remarks	We accept the third party certificatation test
